DIY – removal and installation of headlights halogen and xenon bulbs

4556

Replacing XENON bulb



Preliminary work

  1. Remove the headlight

Important

  • Switch off ignition and remove ignition key.
  • Switch off the relevant loads when changing bulbs.
  • Only use bulbs listed in the bulb table.
  • Only install clean bulbs that are free of grease.
  • Always use a cloth or soft paper when working with bulbs.
  • Observe the safety instructions when changing a bulb in a Bi-Xenon headlight.
  • In certain states, it is compulsory to carry spare light bulbs.

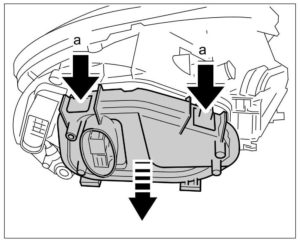

  1. Release and pull off the cover at the two clips -a- .

 hddb1
Opening cover (shown without gas-discharge control unit)

  1. Release gas-discharge headlight by turning once in direction of arrow and carefully remove from the bracket.

 hddb2
Releasing gas-discharge headlight

  1. Release and unplug connector -b- .

 hddb3








Replacing regular Halogen Bulb

hddb5

hddb6

  Remove main headlight.

Removing halogen bulb for high beam headlight

  1. Release the side cover at the clip -a- and open it.

 hddb7

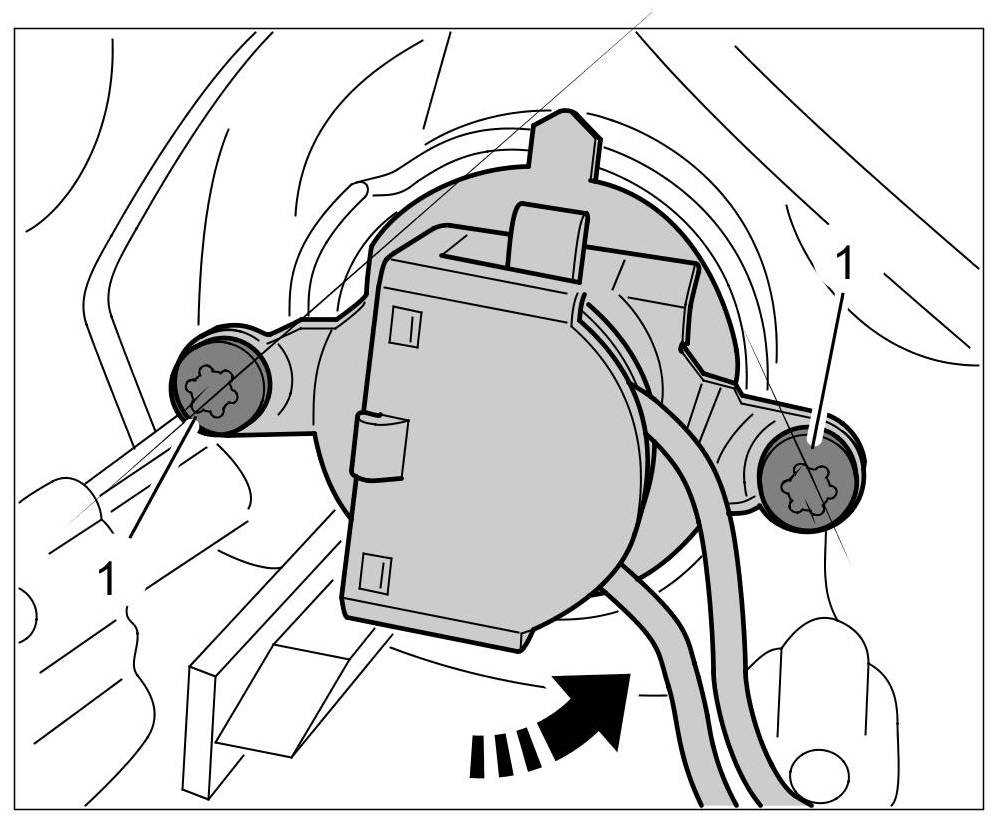

  1. Loosen the two fastening screws -1- used to secure the halogen bulb.

 hddb8

  1. Remove the halogen bulb and socket from the bracket by turning once in direction of arrow.
  2. Unplug connector on halogen bulb.
hddb9



Removing halogen bulb for static cornering light

NOTICE

Incorrect handling of bulb

  1. Release the side cover at the clip -a- and open it.
hddb7
  1. Remove the halogen bulb and socket from the bracket by turning once in direction of arrow.

 hddb10

  1. Unplug connector on halogen bulb.

 hddb9



Installing halogen bulb for high beam headlight

  1. Plug in connector on halogen bulb.

 hddb11

  1. Insert the halogen bulb into the bracket and position it under the two fastening screws by turning once in direction of arrow.

 hddb12

Fitting halogen bulb

  1. Tighten the two fastening screws -1- .
  2. Close the side cover until it engages securely.



Installing halogen bulb for static cornering light

  1. Plug in connector on halogen bulb.
hddb11
  1. Insert halogen bulb and lock it by turning once in direction of arrow.

 hddb13

  1. Close the side cover until it engages securely.
