DIY – Air Vent installation and removal on a Porsche Panamera How to

11692

Removing and installing Centre air vent

175654563

You have to make a special tool that looks like this. You can do that with a wire hanger.

175641519

Removing centre air vent
Installation position of centre air vent

1.1. Insert the first unlocking tool over the third disc from below, fit it at the outside and guide the hook through the opening and onto the metal clips.
1.2. Insert the second unlocking tool under the first disc from above, fit it at the inside and guide the hook through the opening and onto the metal clips.
  1. Release air vent.
175655690

Releasing air vent

2.1. Release the air vent by turning both tools to the left and pull it towards the rear.
  1. Disconnect plug connection.

   175655780

Disconnecting plug connection






Air vent at B-pillar

Removing air vent at B-pillar

175656886
  1. Unclip air vent -A- and remove it -B- .
175654621
  1. Disconnect plug connection.
  2. Reinstall
175655655








Removing and installing rear centre air vent

  1. Unclip cover for menu bar.
175668329
  1. Unscrew the two fastening screws -1- for the air jet.
175668067

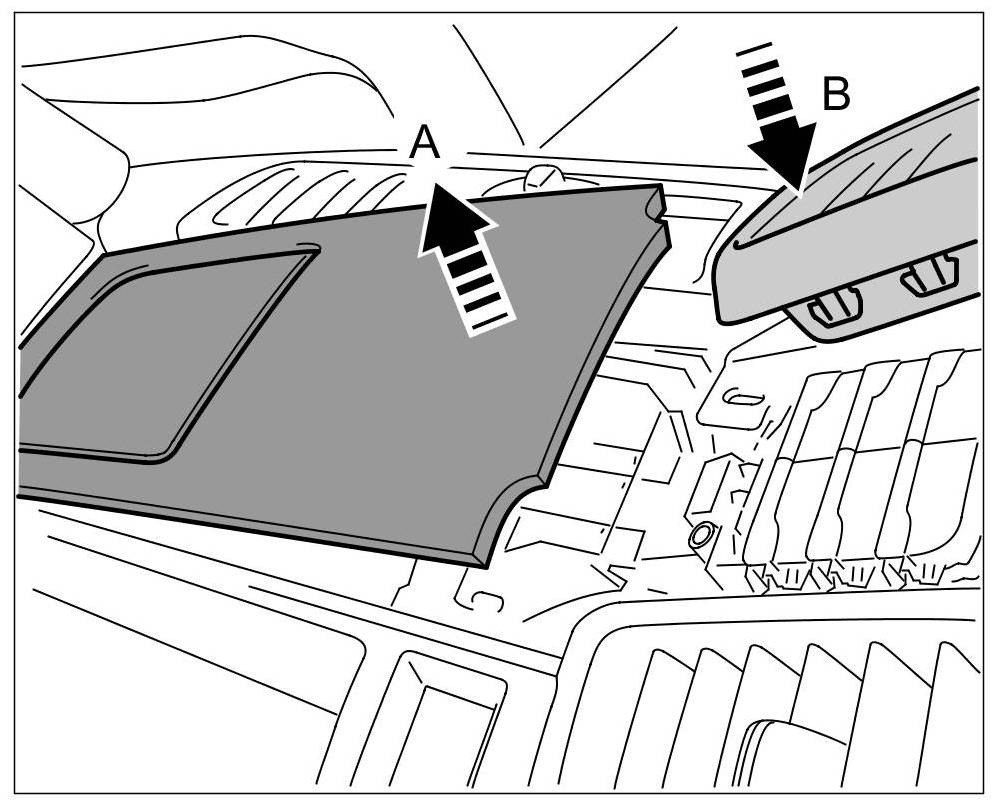

  1. Unclip cover for rear centre console at the front edge and lift it -A- .
175549988
  1. Swivel out air jet -B- .
  2. Disconnect plug connection out of bracket.
175668448
